How to Detect a Missing Alignment Pin in MPO Connectors Using AI-Powered Visual Inspection

The Problem: Why Missing Alignment Pins Slip Through Manual Inspection

MPO (Multi-fiber Push On) connectors are the backbone of high-density fiber optic networks, and their alignment pins are absolutely critical for proper mating and signal integrity. A single missing or damaged alignment pin can cause catastrophic connection failures, signal loss, and costly field returns.

Common defects associated with MPO connector alignment pins include:

• Completely absent alignment pin — pin missing from one or both guide holes
• Partially seated pin — pin not fully inserted into the ferrule housing
• Bent or angled pin — pin installed at incorrect orientation, preventing proper mating
• Wrong pin length — undersized or oversized pin that won't engage the receiving connector
• Damaged pin tip — burrs, chips, or deformation that prevents smooth insertion
• Contaminated pin socket — debris in the guide hole obscuring pin presence

Manual inspection of these tiny components is notoriously unreliable. Alignment pins measure just 0.7mm in diameter, and inspectors examining thousands of connectors per shift experience significant fatigue-related errors. The consistency problem compounds when multiple shifts and operators apply subtly different standards to "acceptable" pin placement.

The Solution: Machine Vision + Deep Learning

AI-powered visual inspection eliminates the variability inherent in human inspection. Deep learning models can be trained to recognize the precise characteristics of correctly installed alignment pins—and flag any deviation instantly.

Unlike rule-based machine vision that requires explicit programming for every failure mode, deep learning adapts to the natural variation in "good" parts while remaining sensitive to true defects.

Overview.ai's approach delivers consistent, objective inspection at full line speed. The system never fatigues, never second-guesses itself, and documents every inspection decision for complete traceability.

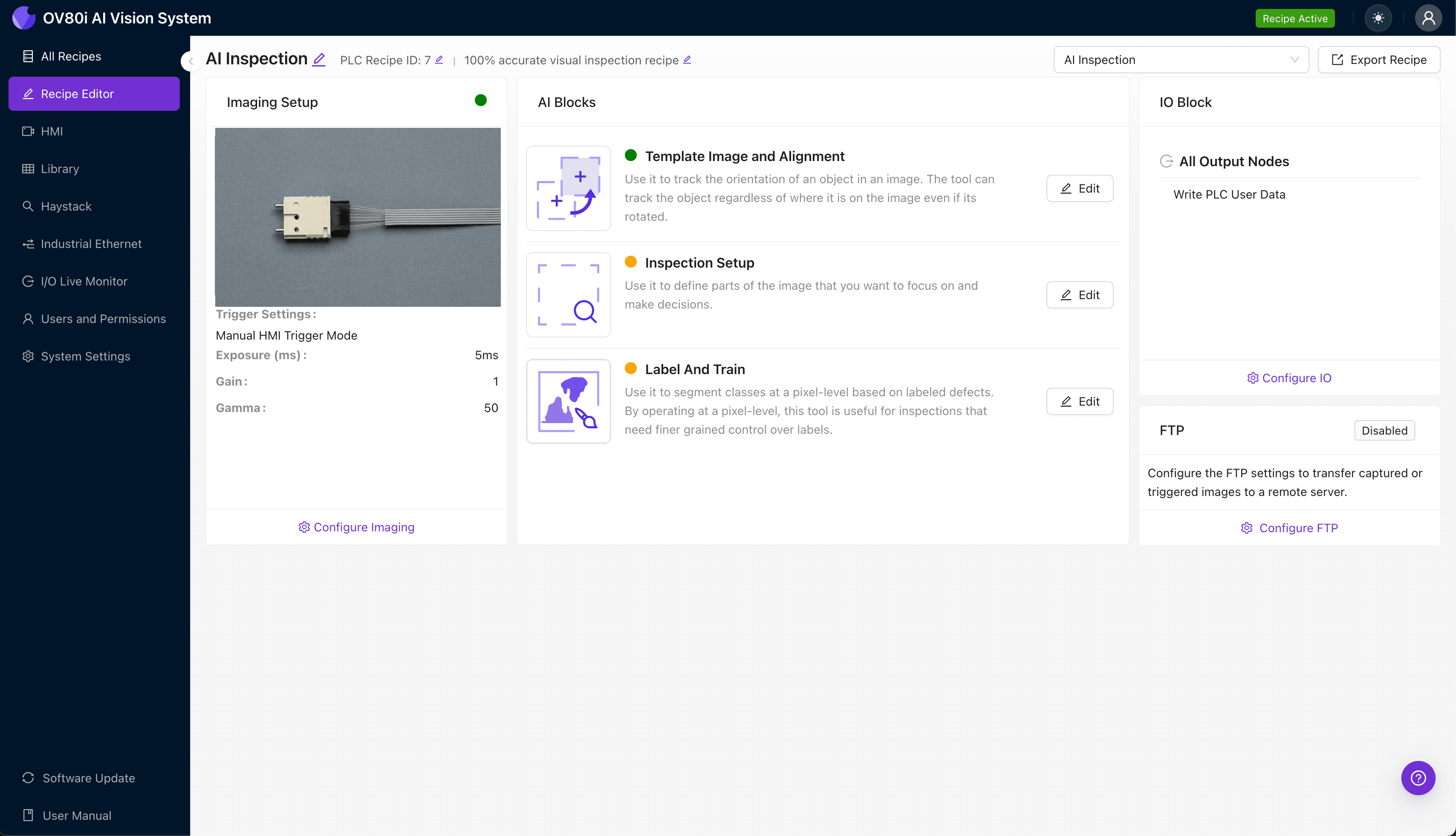

Step 1: Imaging Setup

Position the MPO connector under the OV80i camera with the ferrule face and alignment pin area clearly visible. Consistent part placement is essential—use a fixture or nest to ensure repeatable orientation.

Click "Configure Imaging" in the Overview interface to access your camera settings. Adjust exposure to eliminate glare on the polished ferrule surface, and fine-tune gain to clearly distinguish the metallic pins from the surrounding housing.

Click "Save" once the alignment pin region shows crisp, high-contrast detail in the preview window.

Step 2: Image Alignment

Navigate to the "Template Image" section and capture a reference image of a known-good connector. This template tells the system how to locate and orient each part consistently.

Click "+ Rectangle" to draw an alignment region around the main connector body—include distinctive features like the housing edges or key slot. Set your "Rotation Range" to 20 degrees to accommodate minor part rotation on the line.

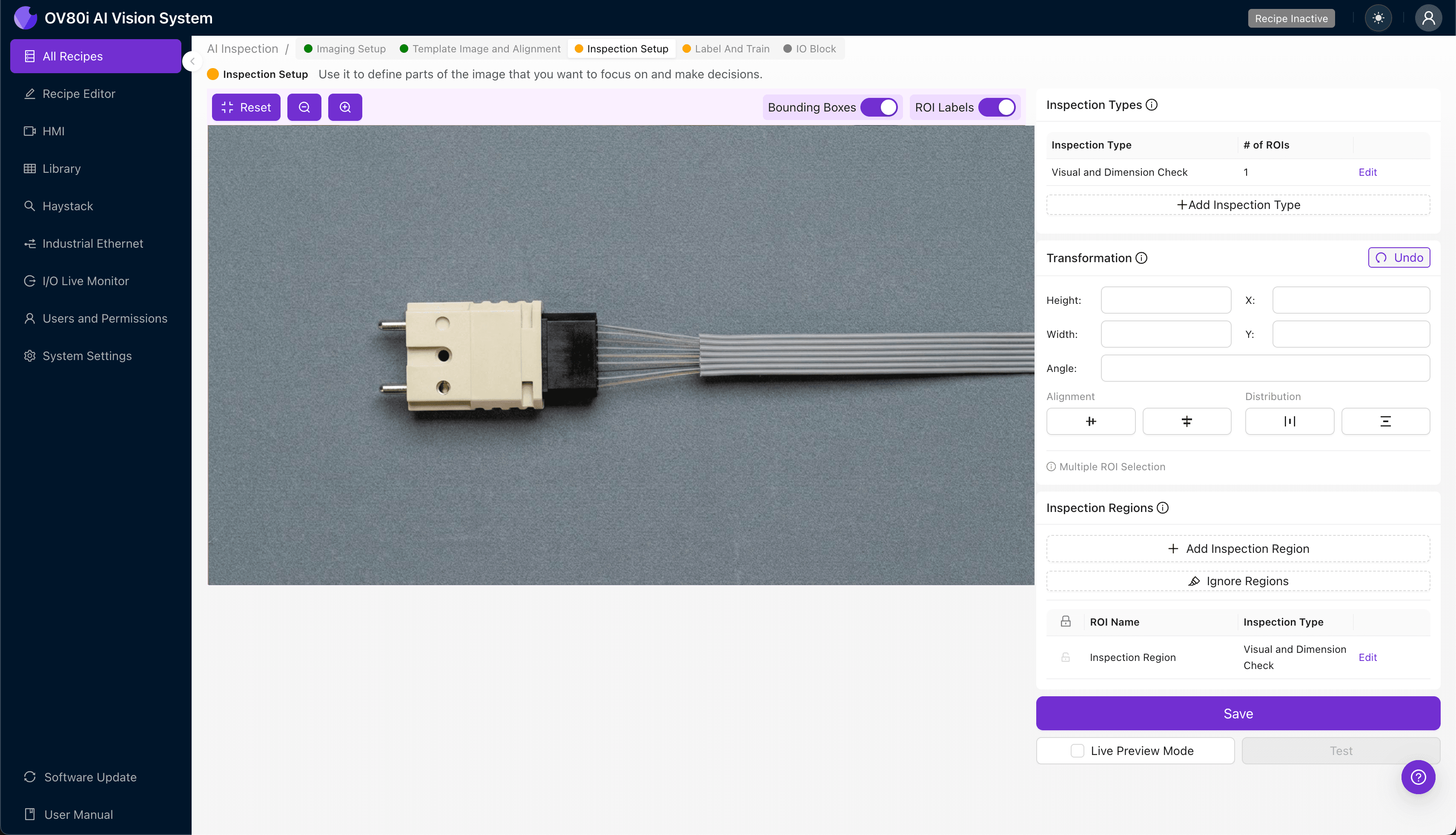

Step 3: Inspection Region Selection

Navigate to "Inspection Setup" to define exactly where the system should look for defects. Rename your "Inspection Types" to something descriptive, such as "Pin_1_Present" and "Pin_2_Present."

Click "+ Add Inspection Region" for each alignment pin location. Resize the yellow bounding box to cover the pin socket area with minimal background—tight regions improve model accuracy.

Click "Save" after positioning all inspection zones.

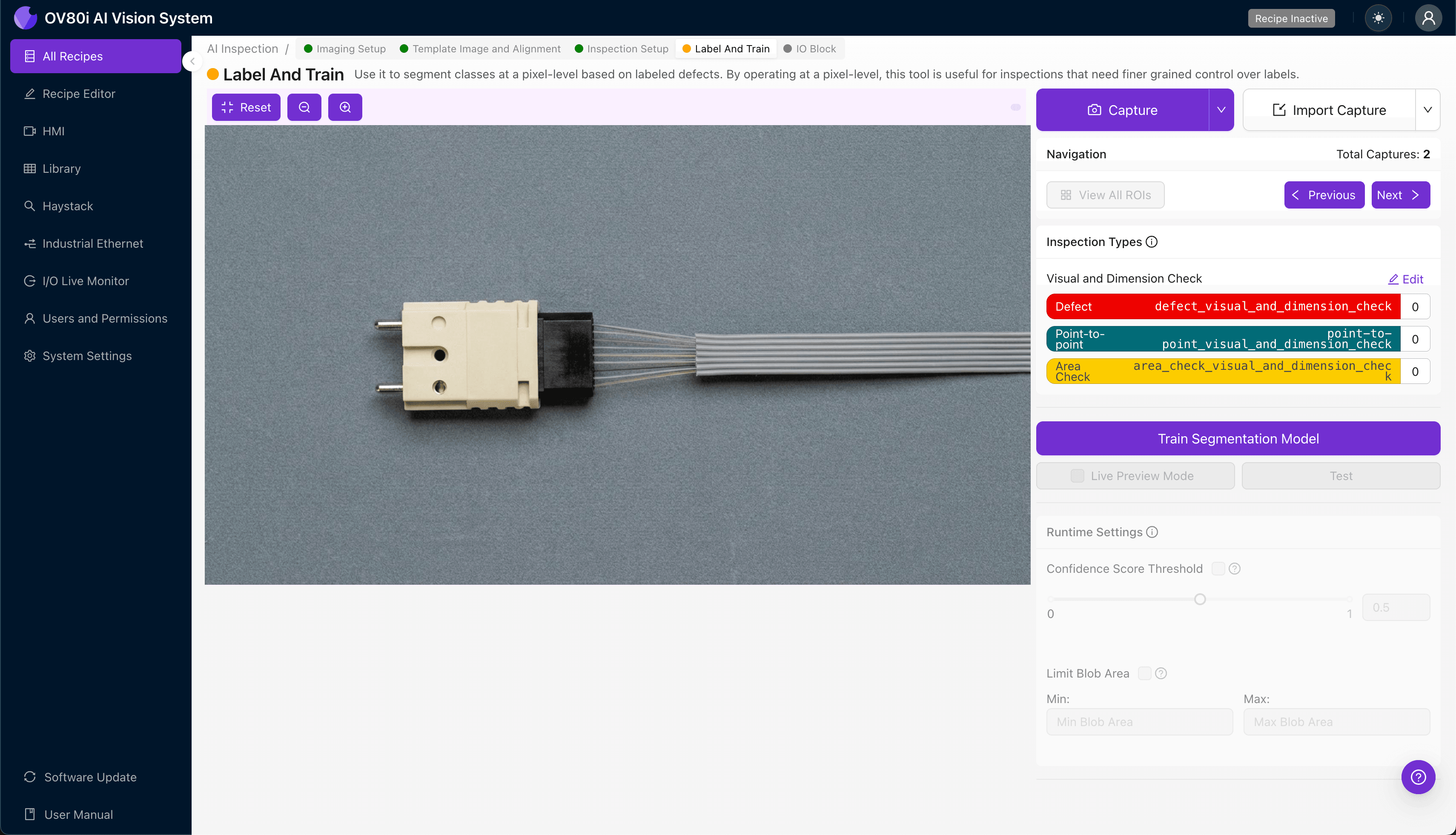

Step 4: Labeling Data

This is where human expertise trains the AI. The system will present production images for you to classify, building the dataset that teaches the model what "good" and "bad" look like.

Label images containing correctly installed pins as Good and those with missing, bent, or improperly seated pins as Bad. Include representative samples across lighting variations, slight position differences, and all known failure modes.

The more diverse your labeled dataset, the more robust your final inspection model will be.

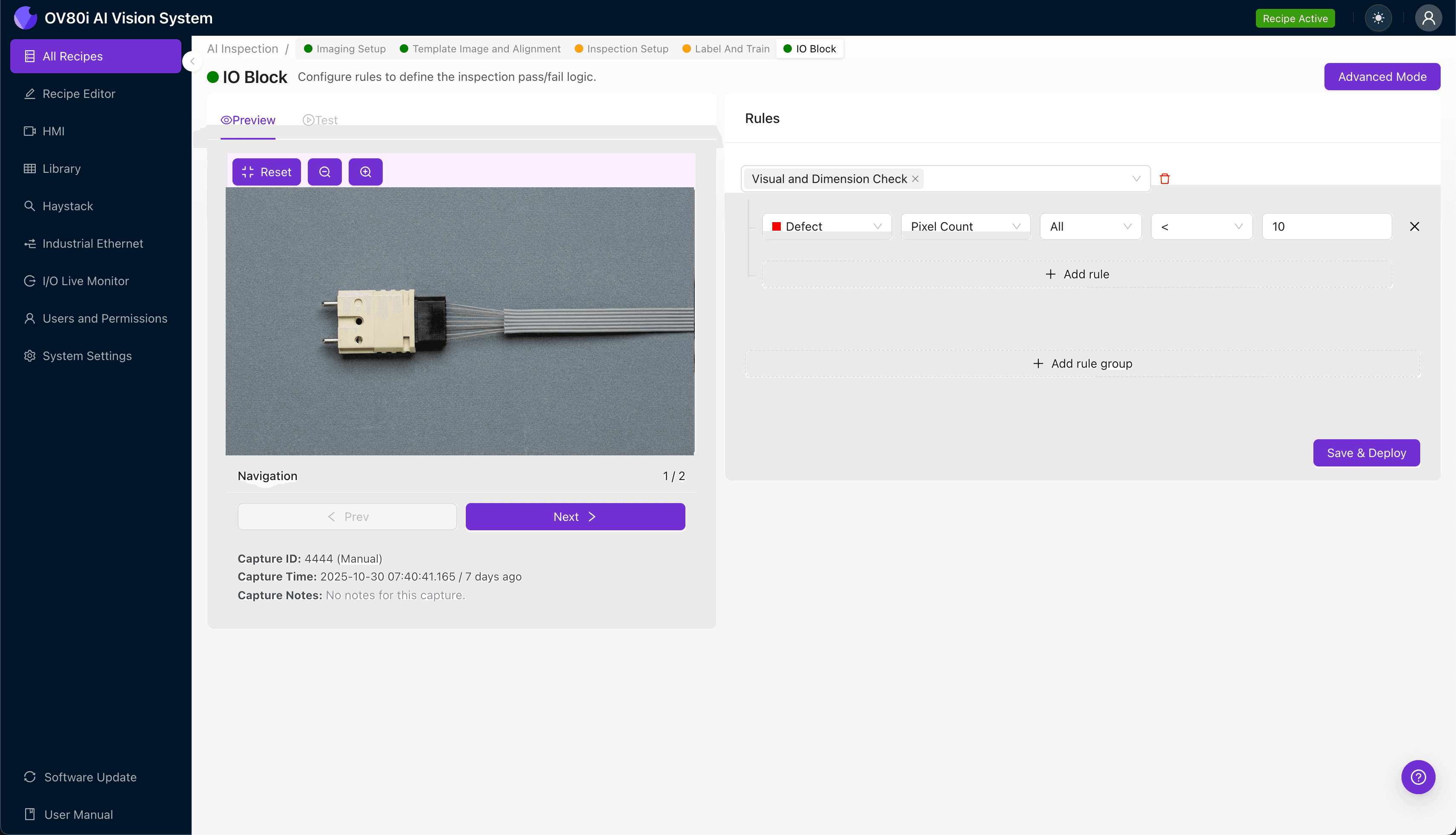

Step 5: Creating Rules

Once your model is trained, navigate to the rules engine to set your pass/fail logic. Define that both "Pin_1_Present" AND "Pin_2_Present" must return "Good" for the connector to pass.

This gates automated acceptance on your production line. Failed parts can be automatically diverted for rework or quarantine, ensuring zero defective connectors reach your customers.

Key Outcomes & ROI

Implementing AI-powered inspection for MPO connector alignment pins delivers measurable business impact:

• Reduced scrap and rework costs — catch missing pins before downstream assembly or packaging
• Higher throughput — inspect 100% of parts at line speed without bottlenecking production
• Compliance and traceability — maintain complete inspection records for customer audits and quality certifications
• Process improvement insights — identify upstream issues causing pin installation failures through defect trend analysis

Missing alignment pins represent a small defect with outsized consequences for MPO connector reliability. AI-powered visual inspection from Overview.ai transforms this challenging inspection point into a consistent, automated quality gate.
