Reporting a number against a drawing is a different job from finding a defect.
Distances, diameters, angles and gaps, measured on every part instead of a sample. What decides whether the number can be trusted, and when the tolerance means you need telecentric optics.
What is vision dimensional measurement?
Measuring a feature from an image and reporting it as a real number against a drawing tolerance. Unlike defect detection, the output is a value rather than a verdict, which means calibration and optics decide whether it is trustworthy long before the software does.
What it measures
Six measurements that cover most lines
Distance
Between two edges, two features, or a feature and a datum. The most common measurement on a line, and the one most often specified as a gap.
Diameter and radius
On holes, bores, pins and rounded corners. Fitted from the detected arc rather than from two opposing points, which is why it tolerates a partially obscured edge.
Angle
Between two edges or two constructed lines. Bend angles, chamfers, and the squareness of a formed feature.
Position
Where a feature sits relative to a datum. Pin position on a connector, hole location on a stamping, print placement on a label.
Gap and flush
The separation and step between two assembled parts. An appearance requirement on trim and a functional one on seals.
Width and length
Overall part envelope, extrusion width, cut length on continuous material. Often the check that catches a tooling problem first.
The hard parts
Four things that decide whether the number is real
Measurement fails differently from detection. A detection either finds the defect or does not. A measurement can be confidently wrong, which is worse.
Perspective error is measurement error
A standard lens images a part sitting 2 mm higher as slightly larger, and sees features away from the centre a little from the side. That variation depends on where the part happened to sit, so no calibration removes it. Where it eats into the tolerance, telecentric optics are the answer rather than a nicety.
The tolerance has to come first
Vision can measure to a fraction of a pixel, but nothing can tell you what is acceptable. Naming the drawing tolerance before the system is designed is what makes the optics a calculation instead of a guess, and it prevents the far more expensive discovery that the station cannot hold a number nobody agreed.
Edges are not infinitely sharp

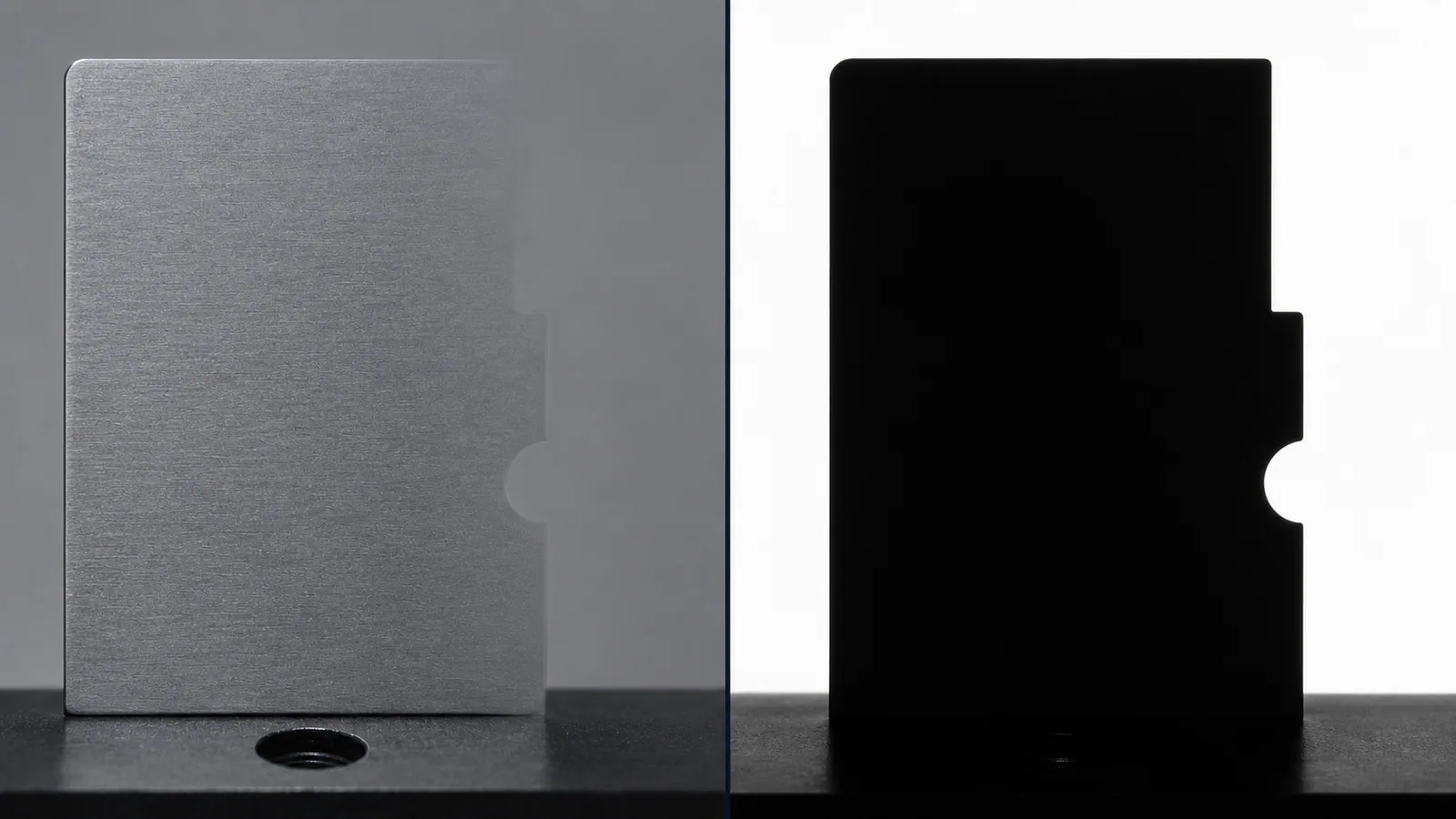

A real edge spans several pixels, and where exactly the boundary sits depends on lighting as much as on geometry. Front lighting on a rounded edge moves the apparent edge with the illumination angle. Backlighting produces a silhouette whose edge lands in the same place every time, which is why it is the default for measurement.
Repeatability matters more than accuracy
A station that is right on average but scatters part to part cannot be used for disposition. Repeatability is what a gauge study measures, and it is a fair thing to demand of a vision system before it gates production rather than after.
How to specify it
- Name the tolerance from the drawing. Not "as accurate as possible". A number, with its plus and minus.
- Decide whether you are measuring or detecting. If a pass or fail verdict is enough, you are detecting, and the optics get much cheaper.
- Work out the pixels needed across the feature so the uncertainty stays a small fraction of the tolerance, then let the field of view and lens follow. Our optics calculators do this for both standard and telecentric paths.
- Estimate part height and seating variation, and check whether the resulting perspective error fits inside the tolerance. If it does not, budget for telecentric optics.
- Agree how it gets verified. A repeatability study on real parts, before the station gates production.
