What is machine vision?
Cameras and software doing industrial visual inspection, at line speed, on every part.
What the term actually means, how it differs from computer vision and AI vision, the technology inside it, and how to tell whether it fits the problem in front of you.
The short answer
Machine vision is the use of cameras and image analysis to inspect parts and control equipment in industry. A camera captures an image, software analyzes it, and the result becomes an action: reject the part, log the measurement, or tell a robot where to reach. It is the industrial, real-time branch of computer vision, and it is how a plant checks every unit instead of sampling.
Terminology
Machine vision vs computer vision vs AI vision
These three get used interchangeably and they are not the same thing. Computer vision is the field. Machine vision is the industrial application of it. AI vision is machine vision built on a trained model instead of hand-written rules.
| Computer vision | Machine vision | AI vision | |
|---|---|---|---|
| What it is | The broad research field | The industrial application of it | Machine vision that learns from examples |
| Where it runs | Servers, phones, vehicles, research | On a production line | On a production line, usually at the edge |
| Typical goal | Understand an image | Pass, fail, measure, locate | Pass, fail, measure, locate |
| How it is built | Code and models, general purpose | Programmed rules and fixed optics | Trained on images of good and bad parts |
| Handles variable surfaces | Depends entirely on the method | Poorly, rules break on variation | Well, variation is what it learns |
| Who sets it up | Researchers and developers | Vision engineers and integrators | Quality engineers, after a short ramp |
The distinction that matters on a plant floor: rules have to be written, models have to be shown examples. More on that in machine vision vs computer vision and AI vision systems explained.
Clearing it up
What machine vision is not
Not a security camera
A camera that records for a human to review later is doing surveillance. Machine vision makes the decision itself, in the moment, and hands the result to equipment.
Not the same as AI
Machine vision is the task. AI is one way to do it. Rule-based machine vision worked for decades with no AI anywhere in it.
Not only about cameras
The camera is the part people picture, but lighting and optics decide what the camera can see at all. Most failed projects failed at the lighting, not the software.
How it works
From light to a decision, in five steps

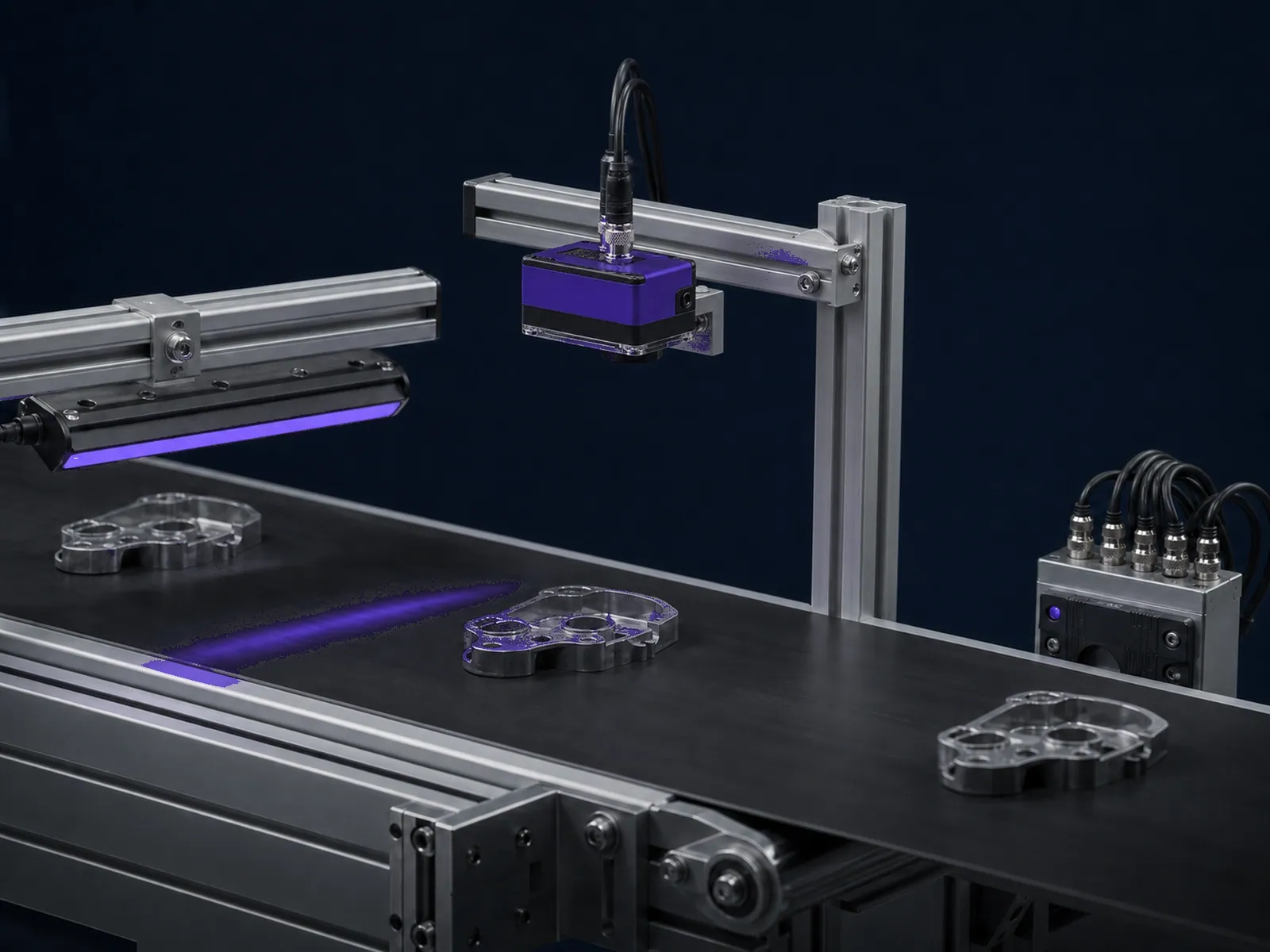

Every machine vision application runs this same sequence, whether the logic is a hand-written rule or a trained model. For how these steps map onto real hardware on a station, see machine vision systems.
Acquire
A camera and controlled lighting capture an image of the part. This step decides everything downstream: if the defect is not visible in the image, no amount of software will find it.
Process
Software cleans up the raw image. Filtering to reduce noise, contrast adjustment, and geometric correction so the same feature lands in the same place every time.
Extract
Algorithms or a trained model pull out the features that matter: edges, shapes, patterns, colors, textures, or the presence and absence of something.
Decide
Those features are compared against defined criteria or a learned reference. The output is a pass, a fail, a class, a measurement, or a coordinate.
Communicate
The result goes to a PLC, a robot, a reject mechanism, or a database, so the line acts on it. A decision nothing reads is not an inspection.
The technology
What is inside machine vision technology

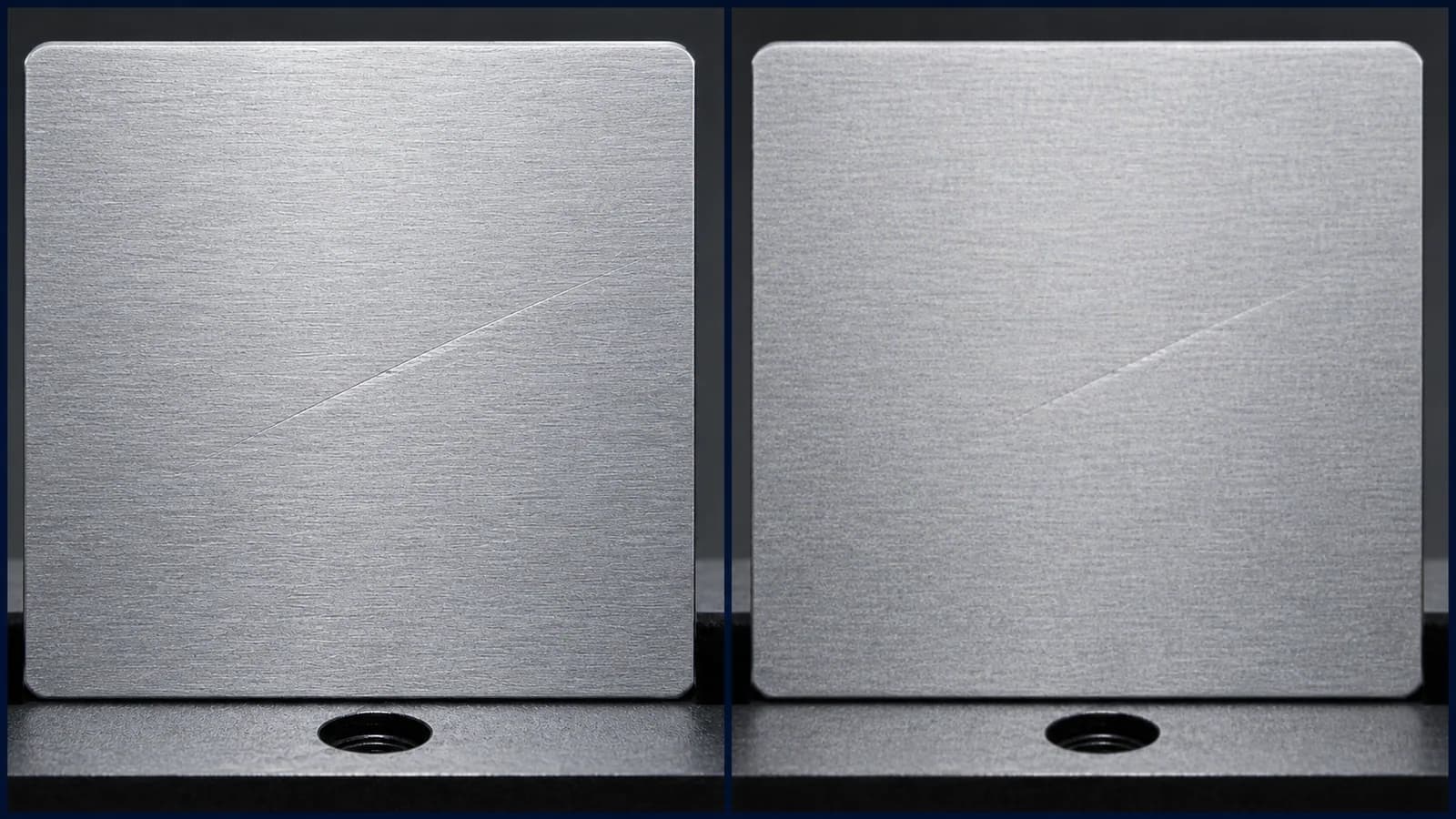

Image sensors
The sensor turns light into an electrical signal. Modern machine vision is almost entirely CMOS, which reads out fast, draws little power, and is cheap to manufacture at volume. CCD sensors dominated for years and still appear where image quality matters more than speed or cost. The number worth caring about is not megapixels, it is how many pixels land across the smallest defect you have to catch.

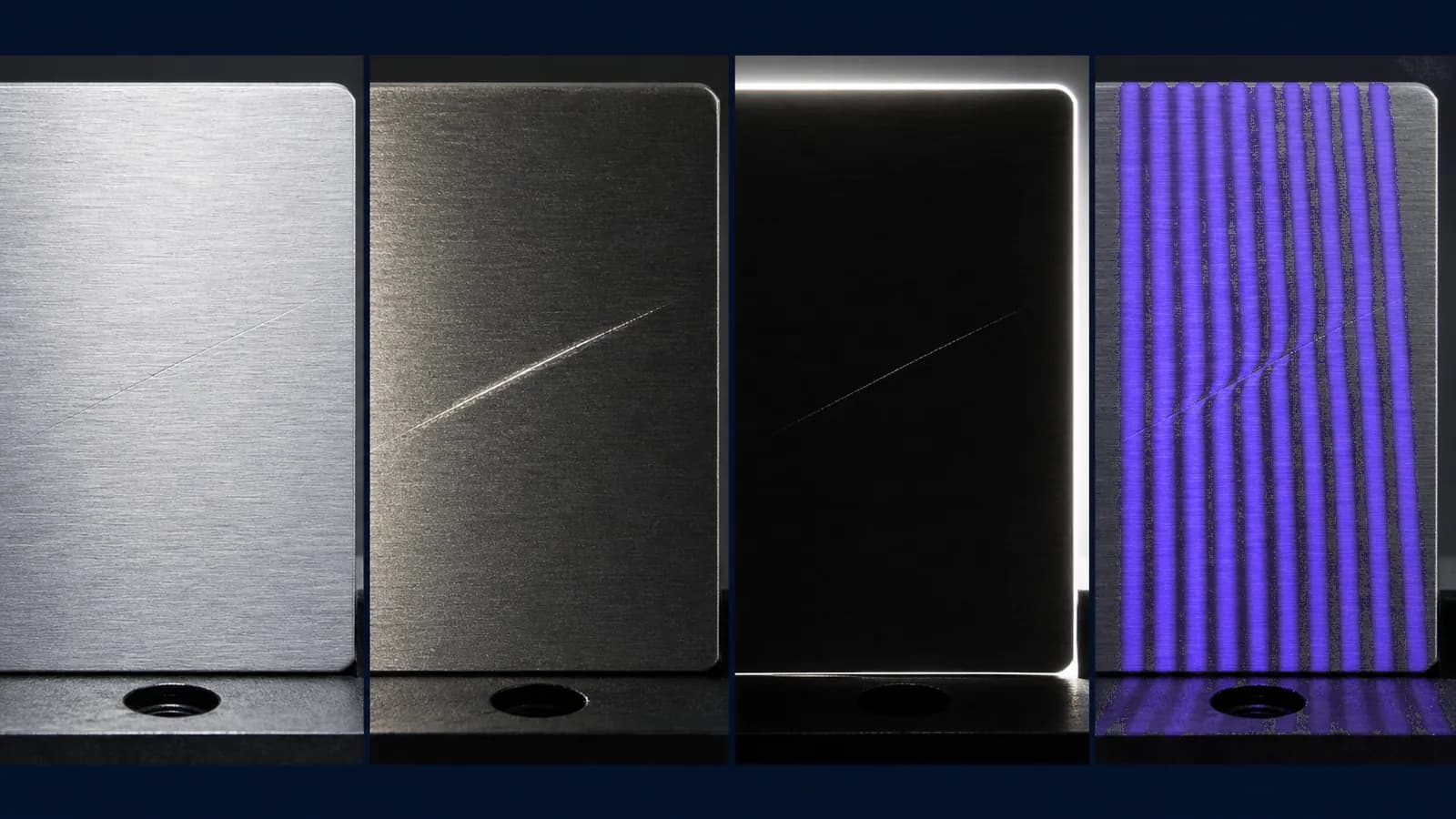

Illumination
Lighting is the highest-leverage choice in the whole system, because it determines whether a defect is visible before any software runs. Four techniques cover most of it, and they are often combined.
Bright field
Direct illumination that shows surface color and texture. The default for general inspection and print verification.
Dark field
Low-angle light that skims the surface, so scratches and raised or recessed defects light up against a dark background.

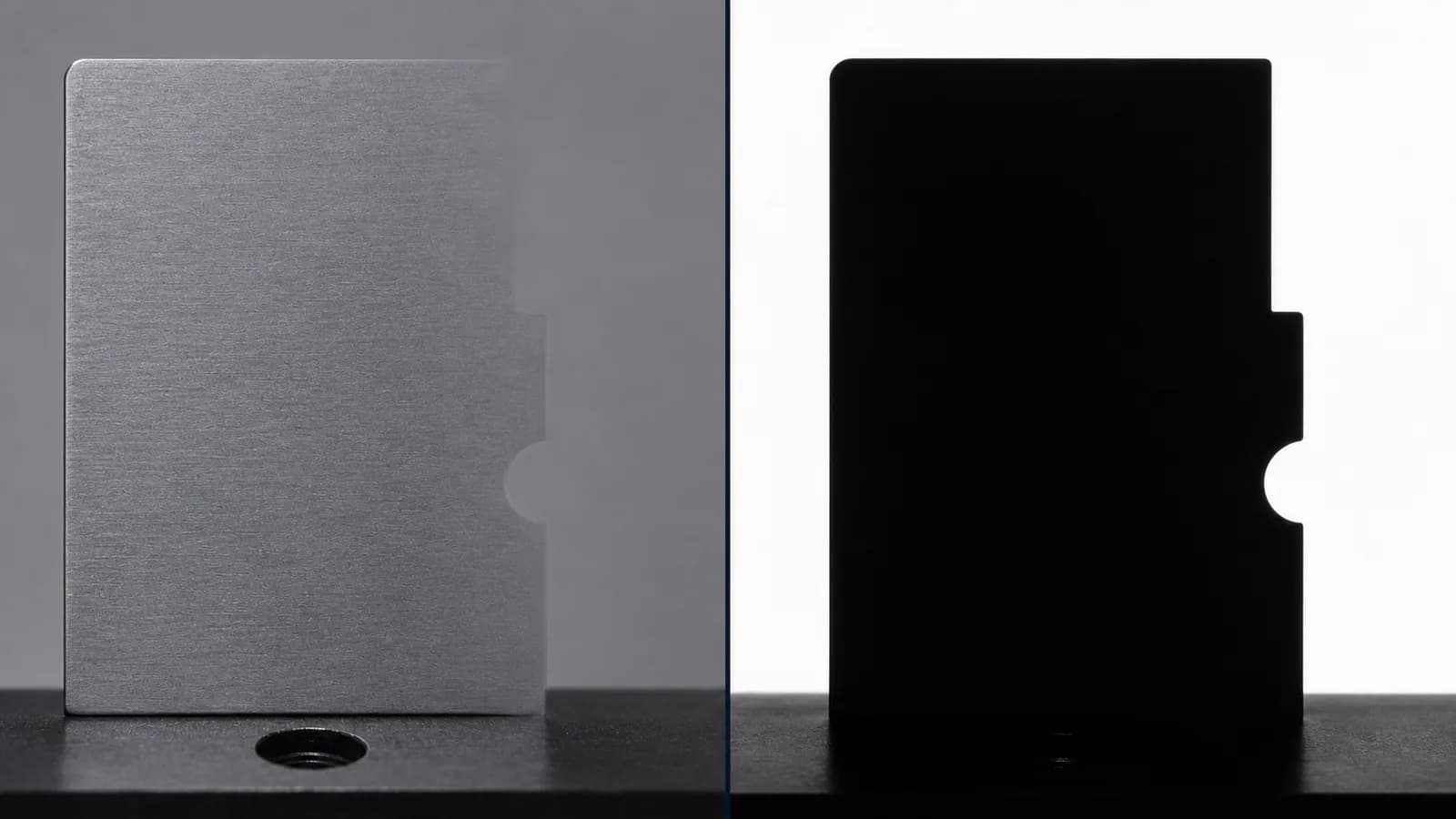

Backlighting
Light behind the part turns it into a silhouette, which gives the crispest possible edges for dimensional measurement.
Structured light
A projected pattern deforms as it falls across a 3D surface, and that deformation is measured to recover height and shape.
Image processing algorithms
Rule-based machine vision is built from a toolbox of operations an engineer chains together. These are still the right answer for measurement and for reading codes, where the rule is exact and the tolerance is numeric.
Edge detection
Finds boundaries where image intensity changes sharply. The basis of most measurement.
Blob analysis
Groups connected pixels of similar value, then counts and measures those regions.
Pattern matching
Locates a known template inside a larger image, even when it has shifted or rotated.
Morphological operations
Grows, shrinks, and cleans up shapes to remove noise before measuring them.
Color analysis
Measures and compares color across regions, for sorting and for verifying the right part is present.
Geometric measurement
Turns detected features into distances, angles, areas, and positions in real units.
Standards and interfaces
Machine vision has real interoperability standards, which is why a camera from one vendor works with software from another. Which one you meet depends on how much data the camera produces and how far the cable has to run.
- GigE Vision: Video and camera control over standard Ethernet. Long cable runs, ordinary network hardware.
- USB3 Vision: The same idea over USB 3.0. Short runs, simple wiring, common on benchtop systems.
- Camera Link: A dedicated high-bandwidth interface for cameras that produce more data than a network can carry.
- CoaXPress: High speed over coaxial cable, which also carries power and control to the camera.
- GenICam: A common programming interface, so software can talk to cameras from different vendors the same way.
Separately from the camera interface, the system has to speak to the line. That is a different set of protocols, covered in industrial protocols.
Applications
What machine vision is used for
Almost everything reduces to four jobs. For the full list of inspection tasks by part and defect, see machine vision applications.
Inspection and quality control
Finding defects, contamination, and departures from spec. This is the most widespread use by a wide margin, covering everything from a scratch on a machined face to a missing component on an assembly.
Surface inspection →Measurement and metrology
Non-contact dimensional measurement at production speed. Useful precisely where a gauge cannot reach, or where touching the part would damage it, and it does not slow the line down to do it.
Measurement tasks →Identification
Reading 1D barcodes, 2D codes such as QR and Data Matrix, and printed characters. This is what makes traceability work, and it verifies that the right information was actually marked on the right part.
OCR and code reading →Robot guidance
A camera locates the part and calculates where to pick or place it. That removes the need for precise fixturing and lets a robot cope with parts that arrive in slightly different positions each time.
Assembly verification →The case for it
Why manufacturers use machine vision
Consistency
The same criteria applied to every part. No fatigue, no drift between shifts, no argument about whether a borderline unit passes.
Speed
Hundreds or thousands of parts a minute, at rates no human inspector can sustain.
Accuracy
Measurement well below what the eye can resolve, and repeatable to the same tolerance every time.
A record
Every inspection produces data. An image and a measurement per unit is the evidence behind a quality claim.
Continuous operation
It runs whenever the line runs, including the shifts that are hardest to staff.
Lower cost of quality
Less scrap, fewer escapes reaching a customer, and inspection labor freed for work that needs judgment.
The honest part
Where rule-based machine vision runs out
Traditional machine vision is precise and it is not going away, but it has four well-known limits. Every one of them comes from the same root: a person has to describe the defect in advance.
Rigid programming
Every criterion has to be stated explicitly. A defect nobody anticipated is a defect the system was never told to look for.
Sensitivity to variation
Rule-based logic struggles when parts vary naturally in color, texture, finish, or position, because the rule cannot tell acceptable variation from a defect.
Setup effort
Getting an inspection right takes vision expertise and a lot of tuning, which is why integration often costs more than the hardware.
Limited adaptability
A new product or a changed tolerance usually means reprogramming rather than retraining, so every change is an engineering project.
What changed
Learning-based methods removed the need to describe the defect in words. You show the system images of good parts and bad parts, and it works out the boundary itself. That is what made variable surfaces, cosmetic defects, and mixed-model lines tractable, and it is why most new deployments are hybrid: programmed logic where the tolerance is numeric, a trained model where the judgment is visual.
Reference
Machine vision glossary
- Field of view
- How much of the scene the camera sees. Set by the sensor size, the lens, and the distance to the part.
- Resolution
- How many pixels cover the part. What matters in practice is pixels across the smallest defect you need to catch, not the sensor megapixel count.
- Working distance
- From the front of the lens to the part. Fixed by the lens choice and constrained by whatever else is on the station.

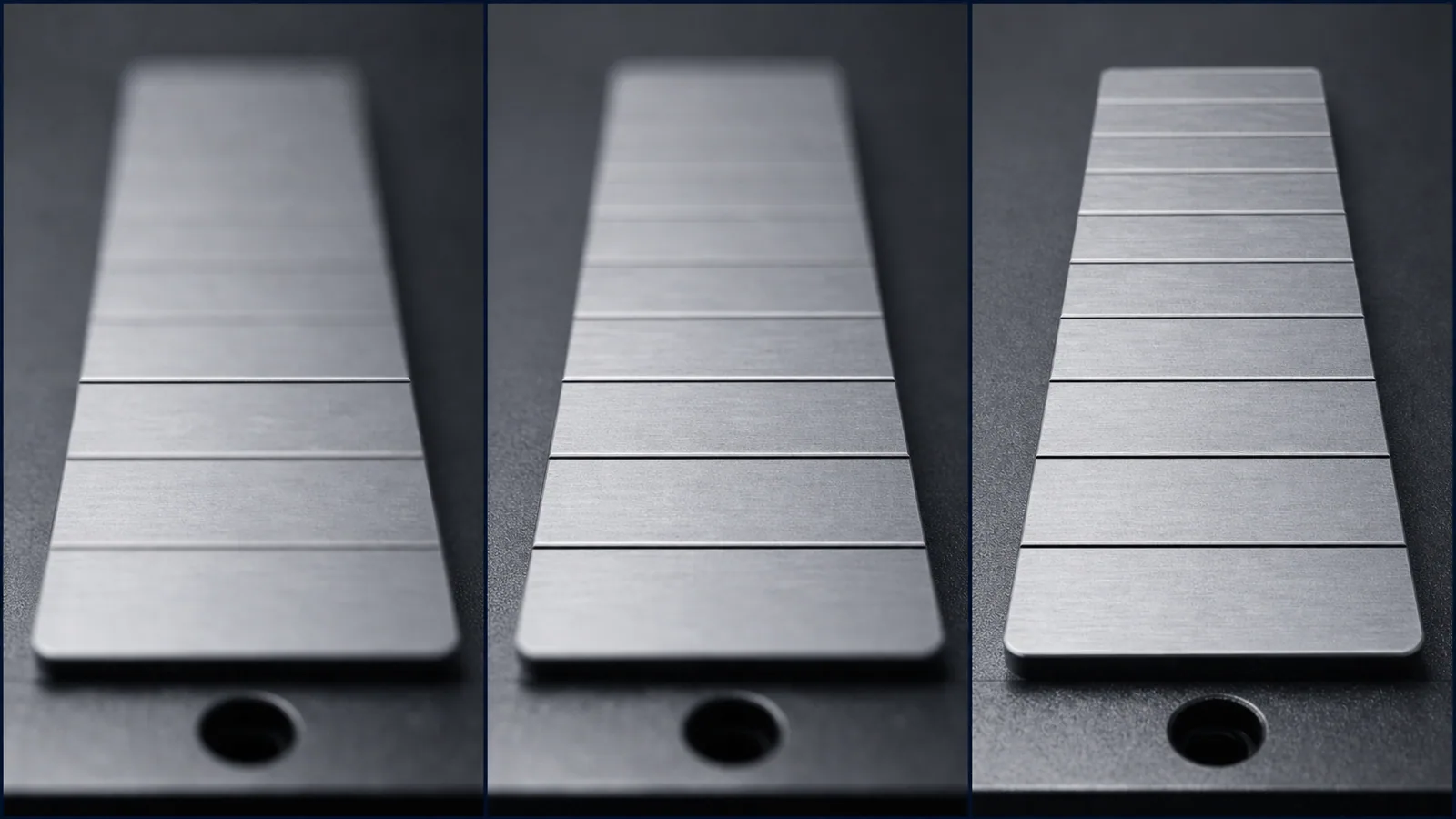

- Depth of field
- How much of the depth stays acceptably sharp. Shrinks as you open the aperture to let in more light.
- Smart camera
- Camera, processor, and inspection software in one housing. The alternative is a separate camera wired to an industrial PC.
- Line scan and area scan
- Area scan grabs a rectangular frame. Line scan reads one row at a time and builds an image from motion, which suits web and cylindrical products.

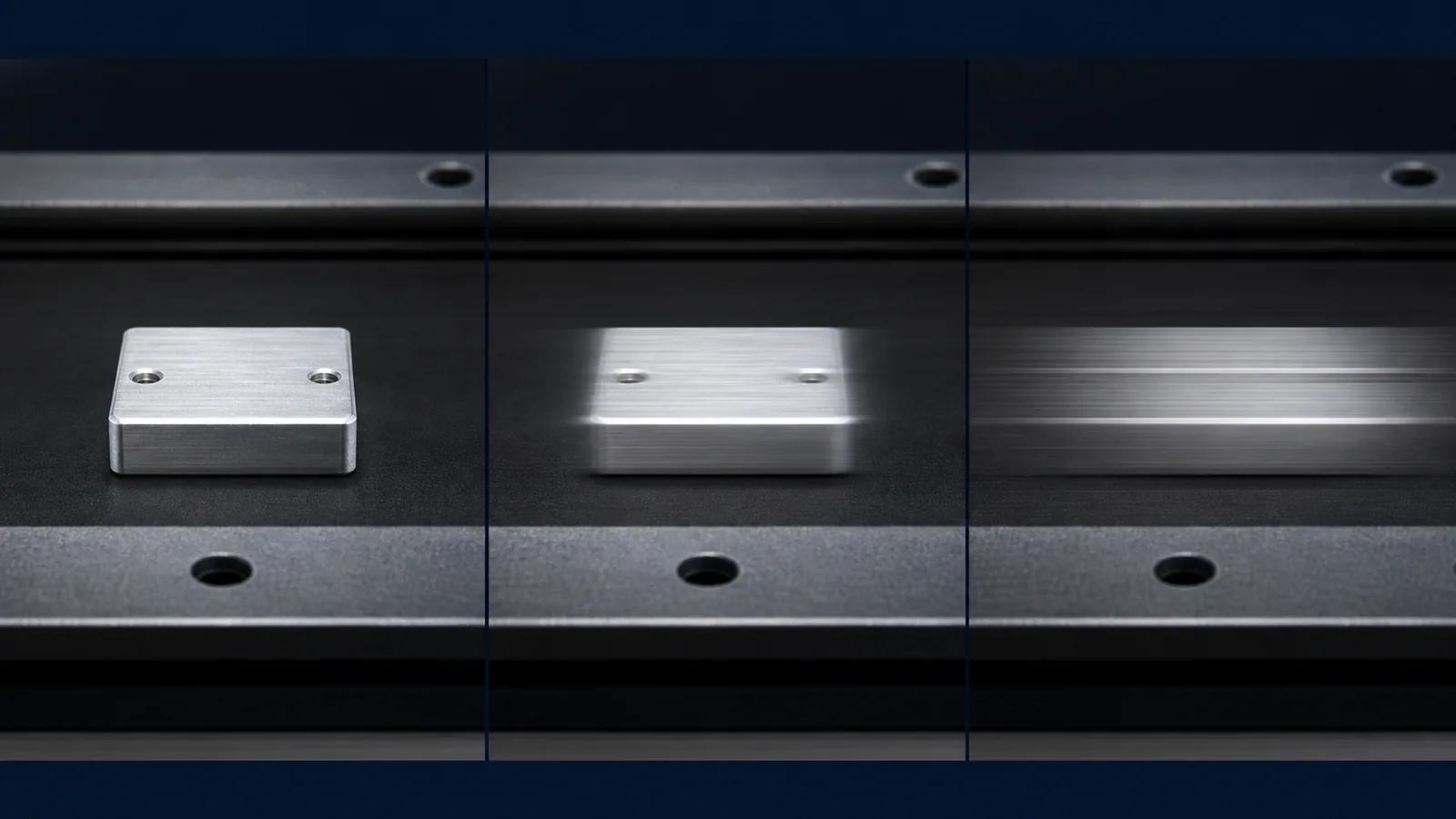

- Exposure
- How long the sensor collects light. Too long on a moving part smears the image, so fast lines need bright light and short exposures.
- Inference
- Running a trained model on an image to get a result. On an edge camera this happens locally, in milliseconds, with no round trip to a server.
Working the numbers yourself? The optics calculators turn a part size and a defect size into a field of view, a working distance, and a lens.
Deciding
Does machine vision fit your problem?
Six questions, in this order. The first one does most of the work.
Start with the defect, not the camera
Name the smallest thing you must catch and its size. Everything about the optics follows from that one number, and skipping it is the most common reason a project fails.
Check the part and its variation
How much do good parts differ from each other? High natural variation is the signal that rules will fight you and a learned model will not.
Confirm speed and accuracy
How fast does the part move, and how tight is the tolerance? Both set hard limits on the lighting, the exposure, and the resolution you need.
Look at the environment
Temperature, vibration, washdown, dust, and ambient light all decide whether a system that works in a lab works on your floor.
Plan the integration
What has to receive the result, and over which protocol? A vision system that cannot tell the line what it found has not finished the job.
Decide who maintains it
If adding a new defect class requires the original integrator, every product change becomes a purchase order. Ask who can retrain it and how.
For the buying checklist at system level, including architecture and integration, see machine vision systems. To get an answer on your specific part and defect, run it through the feasibility check.
